Applied in fields such as injection based image simulation, in vehicle video playback, and hardware in the loop HIL simulation for autonomous driving. Can achieve up to 8 channels of 8M and 16 channels of 2M camera video injection; Simultaneously supporting data injection for 16 CAN/CANFD and 6 1000BASE-T1 in car Ethernet.
Can achieve up to 8 channels of 8M and 8 channels of 2M cameras or 16 channels of 2M camera video injection; Simultaneously supporting data injection for 16 CAN/CANFD and 6 1000BASE-T1 in car Ethernet.
It can simulate various common models of GMSL serializers, such as AX96717 / MAX96717F / MAX9295A / MAX96715, and corresponding deserializers support MAX96712/MAX9296A, etc.
Supports gPTP high-precision synchronization, with an accuracy of less than 1ms
Up to 2 Nvidia RTX3090/4090 graphics cards can be optionally installed

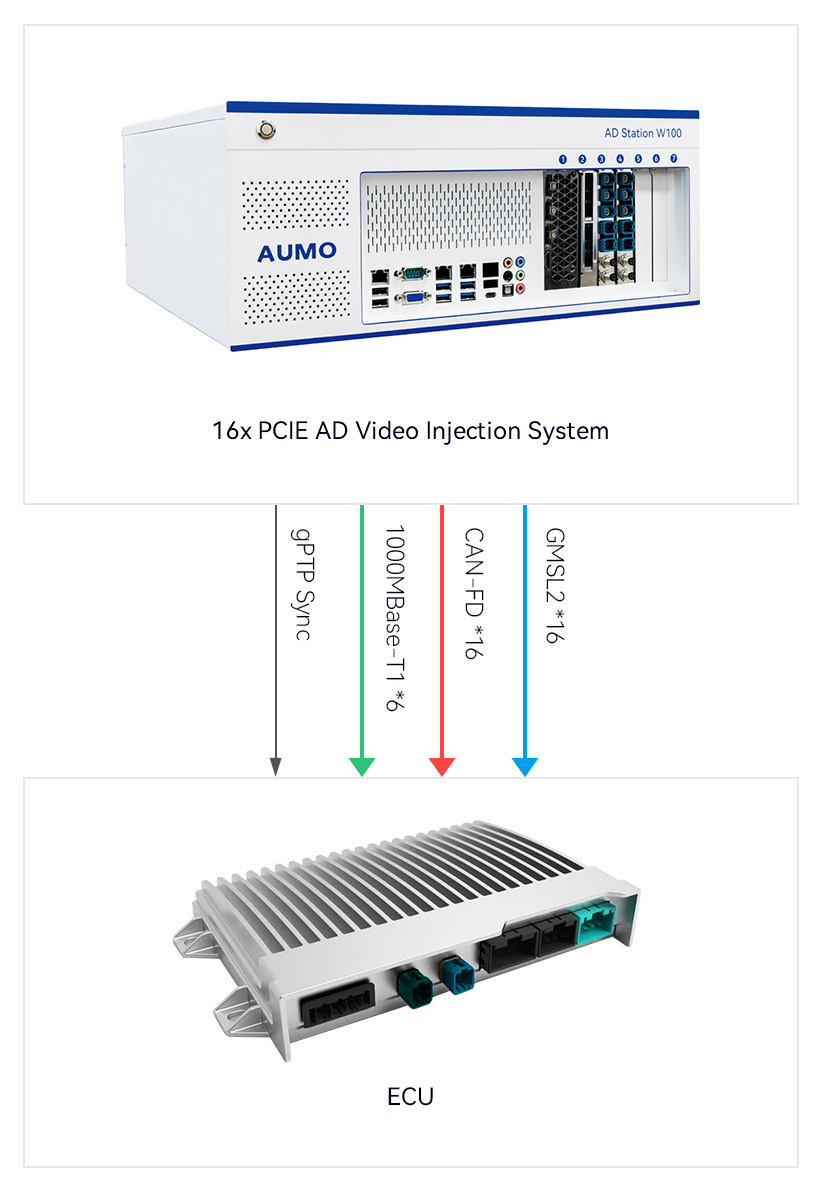

Hardware in the loop testing of HIL solution, self-developed injection software, achieving 16 channel PCIE video injection and backflow
6 pieces of 1000BASE-T1 interface, 4-way 4-in-1 Amphenol mini-Fakra interfaces (16-way video output), and 4 M8 aviation socket (including 16-way CAN/CAN-FD interfaces) are led out at baffle as the external interfaces.
Serializer
Supports MAX96717, MAX96717F, MAX9295A, MAX96715, etc. SSerializer rate 3G / 6G.
Correspondin g deserializer
Support MAX96712 / MAX9296A and so on
GMSL number of channels
16-channel GMSL1/2 video output
Video format
YUV422、RAW12
Output Resolution
Supports a maximum of 16 channels 4096 x
2160@30fps output
PCIE
PCI Express Gen 3 x16
CAN
4x M8 aviation connector (16 CAN / CAN-FD interfaces)
Vehicle Ethernet
3x 1000BASE-T1 interface
Support PTP timestamp with time service,
with the accuracy of less than 1 ms
FAKRA
4-in-1 Amphenal Z code mini-Fakra
Cable length
Under GMSL1 mode can reach 40m (3Gbps)
Under GMSL2 mode can reach 20m(6Gbps)
SDK
Provide SDK for secondary development
Upgrade
Support network port/PCIE firmware upgrade
Operatingsystem
Linux / Windows
Working temperature
0℃～70℃
Storage temperature
0℃～85℃
Working Humidity
10%～90%
Storage Humidity
0～90%
Size
Length and width: 111.15 * 189.99 (mm), standard 4U chassis, support desktop or rack assembly
Used for video simulation of unmanned driving systems
Used for ADAS and autonomous driving test system in loop HIL simulation
Video playback for data collection vehicles
